Energy Saving Display

Product Specification:

Inquiry Now

Product Details

Product Description

Sunrise common cathode cold led display

Sunrise common cathode cold led display Unique Features:

1. Common cathode directly improves the color decaying(brightness, gamut,

color temperature) of the common anode during the continuous temperature rise stage,

and maintains color consistency at extreme temperatures.

2. Common cathode can improve the active power, and the low voltage(2.8V+3.8V)

is used in the light bead power supply to reduce the useless power of the

LED display screen in use, thus achieving energy saving of 20%-30%.

3. Stability long life time——-Low consumption of electricity to

increase the lifetime of LEDs.

4. Energy efficient——–average 180W per sqm, while traditional led display is over 600W per sqm

Product Series	Uranus-O4	Uranus-O6	Uranus-O8	Uranus-O10
Pixels	4mm	6mm	8mm	10mm
Resolution	62500 dots/m2	27777 dots/m2	15625 dots/m2	10000 dots/m2
Gradation	16 bits
Brightness	6500 cd/m2	6500 cd/m2	7000 cd/m2	7000 cd/m2

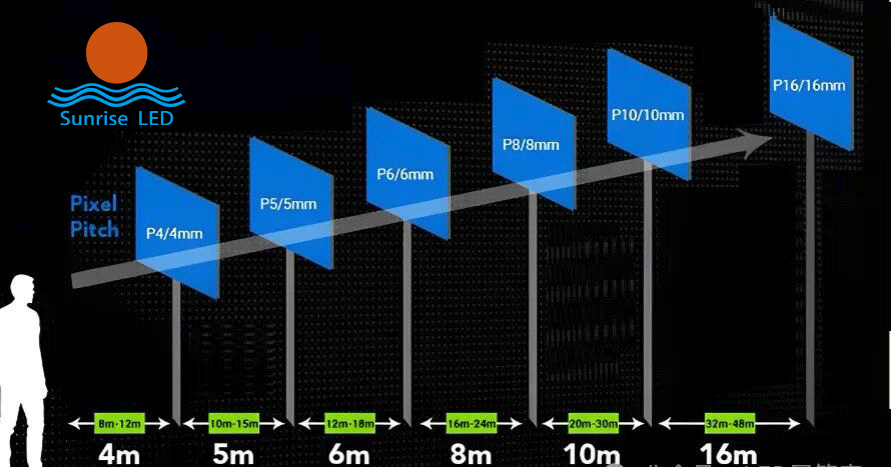

Best Viewing Distance	4-100m	6-200m	8-250m	10-300m
The Maximum Power Consumption	600W/℃
The Average Power Consumption	180W/℃
Weight	30KG/℃
Thickness	8 cm
Refresh Rate	5560 Hz
Display Mode	1920*1080
Working temperature	-20 to 60 ℃
Storage temperature	-30 to 70 ℃
Protecting Rating	IP65

Test result

Temperature test of LED and PCB, the test results shows the common cathode directly improves the color decaying and keep the temperature at a very lower level.

Packing by wooden case

Covered by foam and soft material to protect the panels firmly

FAQ

1, Why is this kind of led display so power saving?Common cathode can improve the active power, and the low voltage(2.8V+3.8V) is used

in the light bead power supply to reduce the useless power of the LED display screen in use,

thus achieving energy saving of 20%-30%.

2, Should I prepare air conditioner to cool off the display?

No need. Since the power is very low, the display doesn’t release so much heat,

the temperature of the display back is 20 ℃ lower than common led display. So no need air conditioner.

3, How should I install the display?

Installation drawing will be sent,

if needed, engineers can be sent to give support on installation.

4, What warranty is it? Can I get longer warranty?

Standard warranty is 2 years, longer warranty is available, as long as 5 years.

5, What is the payment terms?

30% of the total amount as deposit, balance paid before the delivery.

6, Can I customize the product?

Yes, panel size can be bigger or smaller according to the specific condition.
